Nesting XLOOKUP with Other Functions for Advanced Data Analysis
What is XLOOKUP?
XLOOKUP is a more versatile and powerful lookup function introduced in Excel, allowing users to perform searches not just vertically but in any direction (left, right, or even downward). Whether you are after an exact match (which is the default), an approximate match (the closest value), or a wildcard match (partial matches), XLOOKUP handles them all with ease, making it an essential tool for advanced data analysis.
Additionally, XLOOKUP does not require fixed column numbers and it handles errors more gracefully than VLOOKUP.

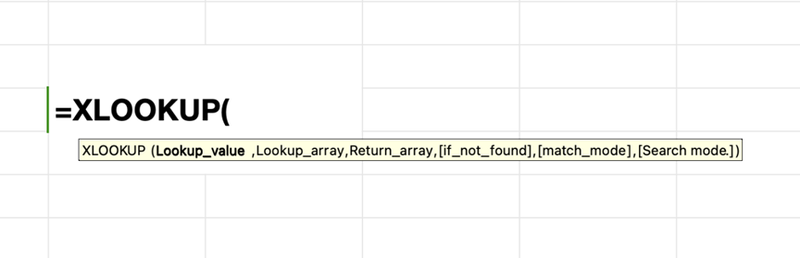

The syntax for using XLOOKUP is:
=XLOOKUP(lookup_value, lookup_array, return_array, [if_not_found], [match_mode], [search_mode])
- lookup_value: This is the value you want to search for within the lookup array. It can be a cell reference (e.g., A2) or a specific value like a number or text. For instance, if you are searching for a specific product ID, this is where you input it.
- lookup_array: This is the range of cells that contains the lookup value. Unlike VLOOKUP, XLOOKUP allows you to search in any direction, so the lookup array can be located in any column or row. For example, if the product IDs are listed in column B from cells B2:B100, that range becomes your lookup array.
- return_array: The range that contains the value you want to return. This is similar to the column index in VLOOKUP, but you specify the actual range directly. Also unlike VLOOKUP, it can be in any column or row, and does not have to be to the right of the lookup column. For example, if you want to return values from column D, the return array could be D:D or D2:D100.
- [if_not_found]: This is an optional argument that specifies what should be displayed if no match is found. Instead of showing an error (#N/A), you can provide a custom message (e.g., "Not Found", “No match”, or even “ “ to leave it blank).
- [match_mode]: This is another optional argument that controls how the match is made. The options include:
a) 0 (default): Exact match. If no exact match is found, it returns an error.
b) -1: Exact match or the next smaller item.1: Exact match or the next larger item.
c) 2: Wildcard match, allowing for partial matches using * and ? characters.
- [search_mode]: This optional argument lets you control how Excel performs the search:
a) 1 (default): Search from first to last (top to bottom)
b) -1: Search from last to first (bottom to top)
c) 2: Perform a binary search (ascending order)
d) -2: Perform a binary search (descending order)
Nesting XLOOKUP for Advanced Data Retrieval
XLOOKUP becomes more powerful when nested with other functions, enabling you to perform dynamic and complex lookups. Nesting simply means placing one function inside another function in Excel (or other programming languages).
Below are examples of how to nest XLOOKUP with other Excel functions for advanced data analysis.
1. Nesting XLOOKUP with SUMIF
You can use XLOOKUP inside a SUMIF formula to dynamically calculate sums based on a lookup result.
Imagine you have a sales dataset, and you want to sum the sales for a specific product category, dynamically selected based on an ID lookup.
For example, we can use XLOOKUP to find the product category based on the product ID, and then use SUMIF to sum the sales in that category:

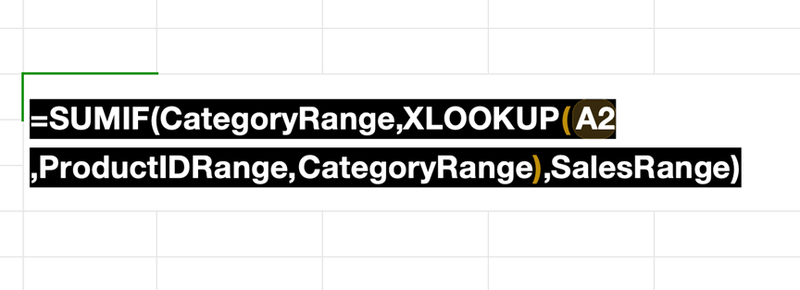

=SUMIF(CategoryRange, XLOOKUP(A2, ProductIDRange, CategoryRange), SalesRange)
Here is what happens:
XLOOKUP(A2, ProductIDRange, CategoryRange) retrieves the product category based on the product ID in cell A2.
SUMIF then sums the sales for that category.
2. Combining XLOOKUP with IF for Conditional Lookups
You can nest XLOOKUP within an IF statement to introduce conditional logic in your lookup.
Suppose you want to retrieve a price from a pricing list, but if the price is not found, you want to return a standard fixed price instead of an error:
=IF(XLOOKUP(A2, ProductIDRange, PriceRange, "Not Found") = "Not Found", FixedPrice, XLOOKUP(A2, ProductIDRange, PriceRange))
This formula will perform a lookup for the product price. If the product ID is not found, it returns a fixed price instead of an error.
=IF(XLOOKUP(A2, ProductIDRange, PriceRange, "Not Found") = "Not Found", "Contact for Price", XLOOKUP(A2, ProductIDRange, PriceRange))
The statement above will return the text “Contact for Price”
3. NESTING XLOOKUP WITH IFERROR / IFNA
Nesting XLOOKUP with IFERROR or IFNA allows you to manage errors gracefully. It helps you handle cases where no match is found by returning a custom message or value instead of an error.

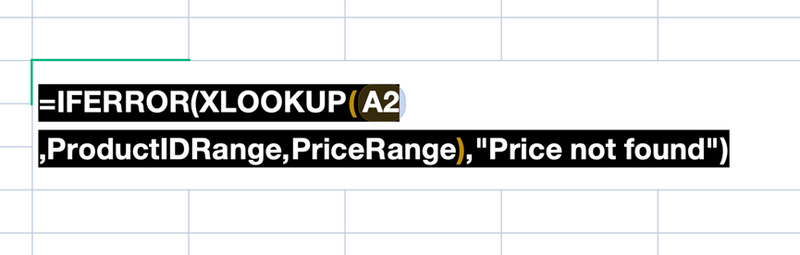

=IFERROR(XLOOKUP(A2, ProductIDRange, PriceRange), "Price not found")
This statement will return “Price not found”, if XLOOKUP does not find a match.
4. SUMPRODUCT
XLOOKUP can be combined with SUMPRODUCT for more advanced calculations involving conditional multiplications and summations, like weighted averages.
=SUMPRODUCT(QuantityRange, XLOOKUP(A2, ProductIDRange, PriceRange))
This will calculate the total sales by multiplying the quantity by the price retrieved from XLOOKUP.
5. Nesting XLOOKUP with COUNTIF
Nesting XLOOKUP inside COUNTIF allows you to count occurrences based on lookup results.
=COUNTIF(CategoryRange, XLOOKUP(A2, ProductIDRange, CategoryRange))
This statement will look up the product category for A2 and counts how many times that category appears in the dataset.
Conclusion
XLOOKUP can also be nested with other formulas like:
CONCAT, INDEX and MATCH, CHOOSE, LEFT, RIGHT, MID, TEXT, and even ARRAYFORMULA in Google Sheets.
By combining XLOOKUP with these advanced functions, you can create dynamic, efficient, and highly customizable solutions for complex data analysis tasks. Embracing XLOOKUP’s full potential will streamline your data management workflows by allowing you to save time and reduce errors.
Ayomikun Ojueromi
